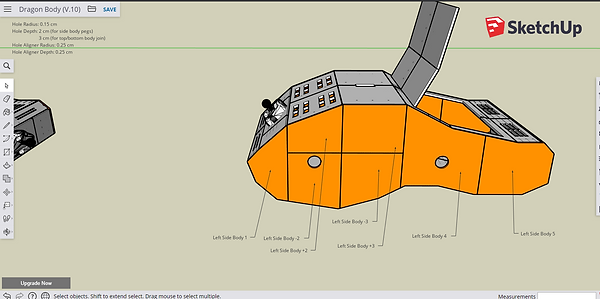

All the pictures shown here are included in the parts file. I put the pictures here for quick reference.

​

Notes:

​

(L.B) means Load Bearing. Parts that have L.B in the name should be printed with a higher infill (40% or higher).

The rest of the body parts can be printed with 10%-20% infill

​

In order to secure the parts together you must use the connecting pegs (or tooth picks) to align the parts, and then glue them together with PVC glue (or any other glue that is strong enough to hold them together). MAKE SURE EVERYTHING IS CORRECT BEFORE GLUING! I recommend doing one side of the body (left or right side of the body) first and saving the other side for last. That way you will have an easier time inserting all the components that have to go inside the body.

​

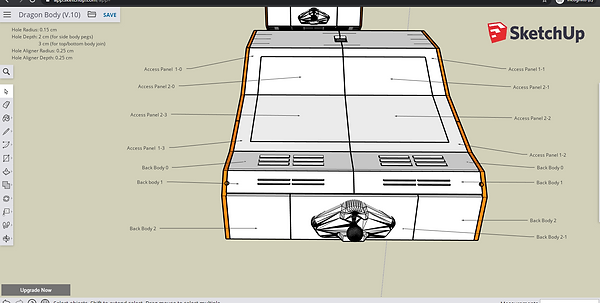

The access panel 2-0 and 2-1 have hinges that you bolt on so you can open the hatch/panel (as shown in the side view). The hinges are reversible and they get bolted on from part 2-0 to part 1-0 and from part 2-1 to part 1-1.

The hinges should be printed with an infill of 40% or higher.

​

None of the parts need to be printed with support.
